Description
This support will work on guitars between 80mm and 113mm wide.
Far more reliable than suction cups, used by other brands' guitar support, the Woodside Support's grippers firmly grasp the edge of the instrument. The Woodside Support's unique (patent applied for) pivoting system compensates for any guitar body depth variation, and grips at all four points equally.
The GS4 utilizes a locking ball and socket mechanism to attach the support pillar to the clamping cradle. This gives the player the freedom to set up whatever angle they choose between the clamping cradle and the leg rest.

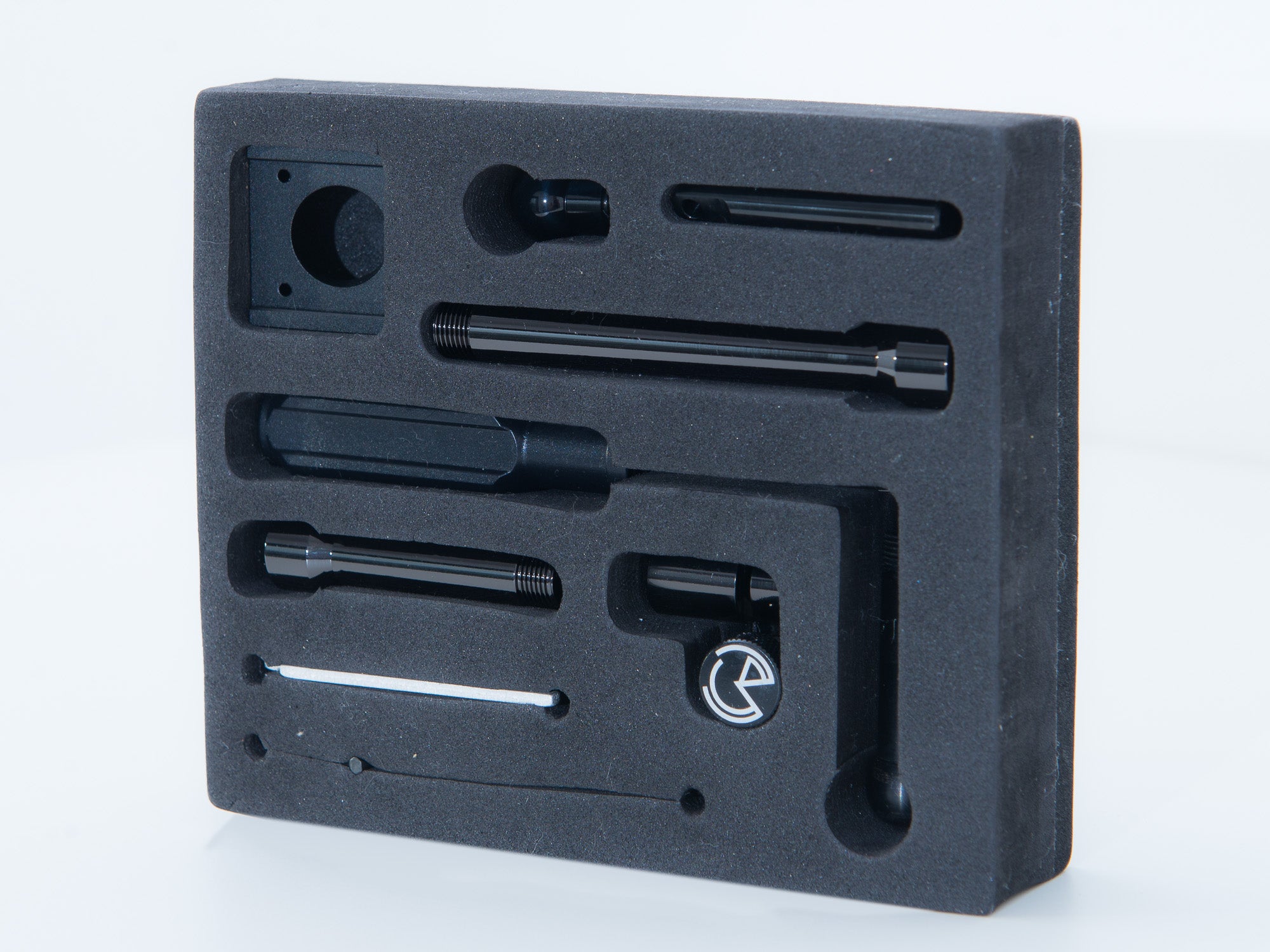

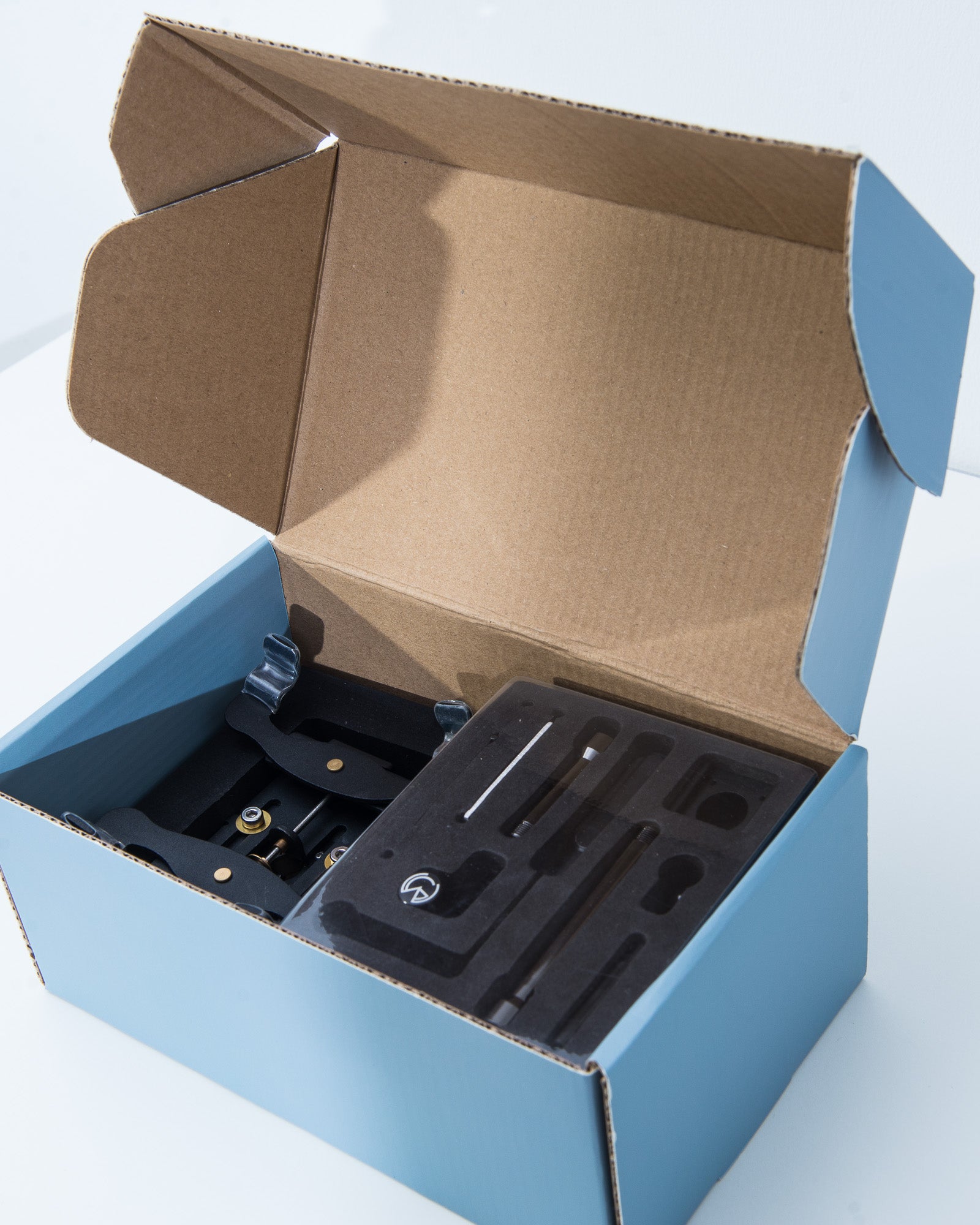

To stow the GS4, simply unscrew the adjuster wheel to remove the support pillar, fold it down, and you're ready to pack your GS4 into a guitar case and hit the road. The GS4 is made using only premium materials and built to last a lifetime.

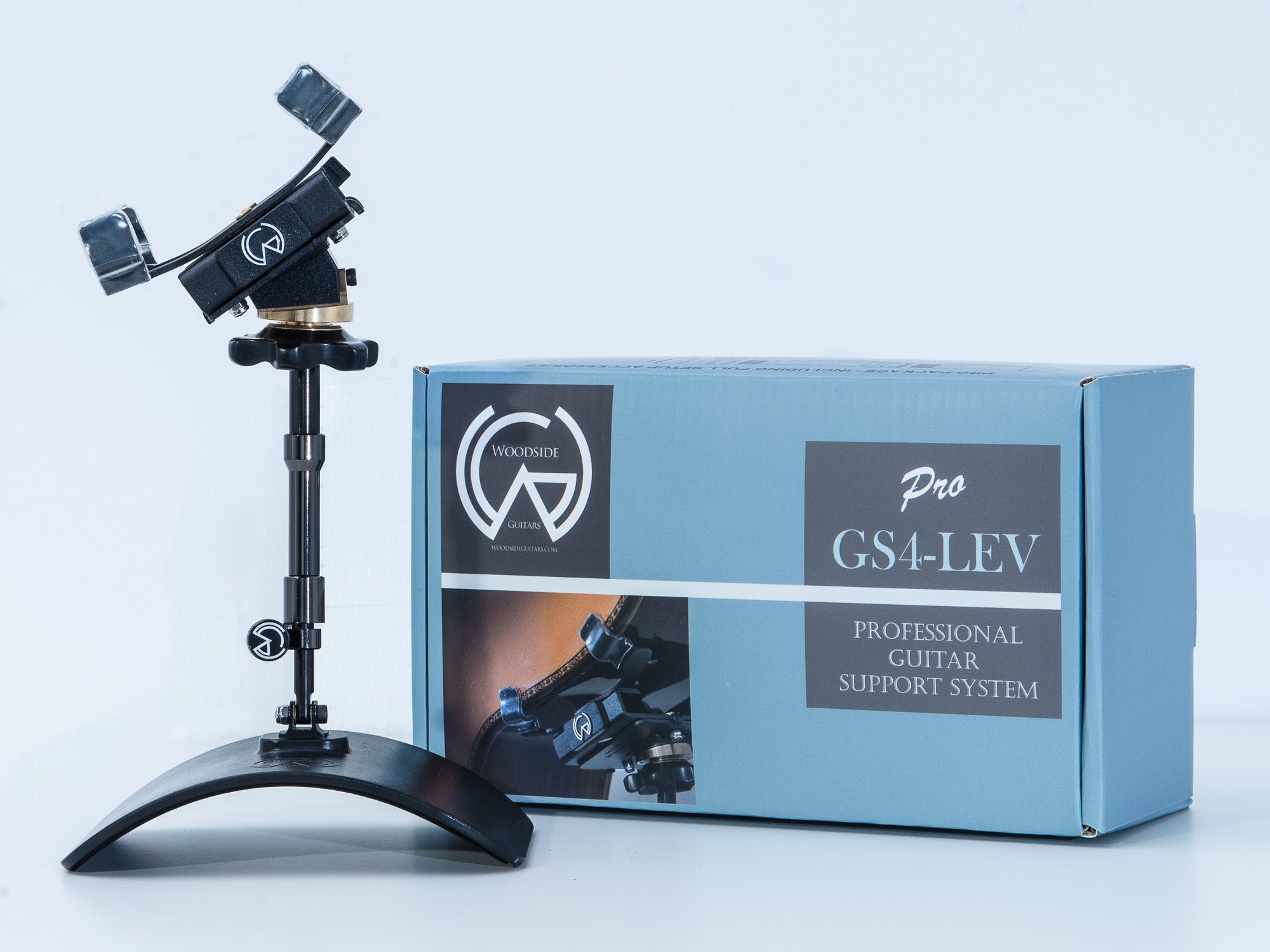

The GS4-Pro has the same great features as the GS-4 LEV, in a professional version.
- Quick On/Off Lever locking
- Ball & Socket Angle Adjustment
- Even-grip Pivoting Grippers
- Set & Forget Personalized Fit

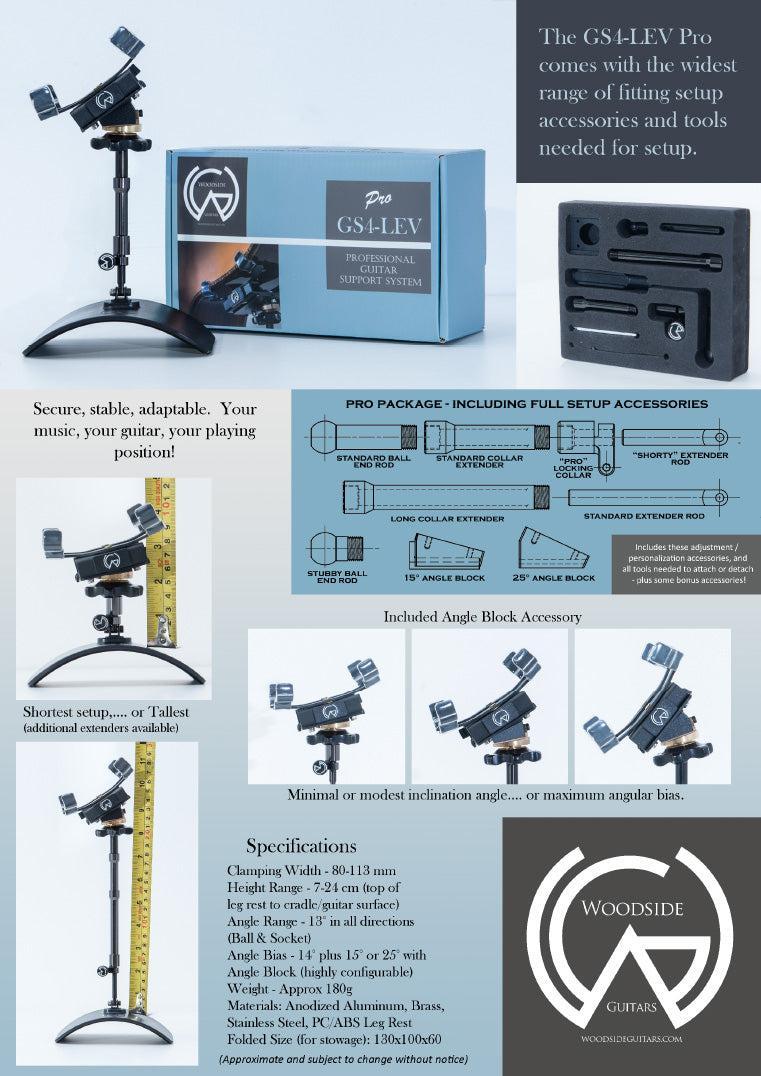

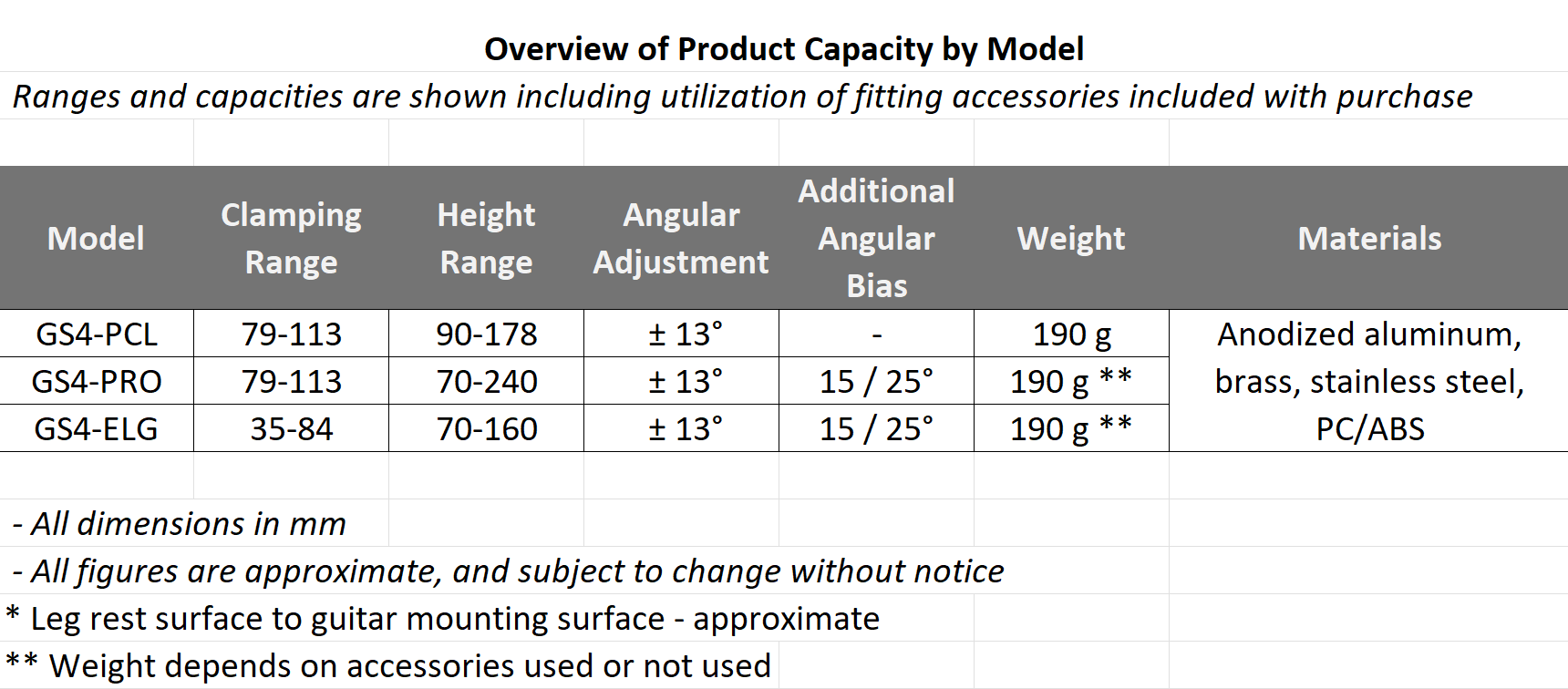

Specifications
• Clamping Width Range: 80 – 113 mm

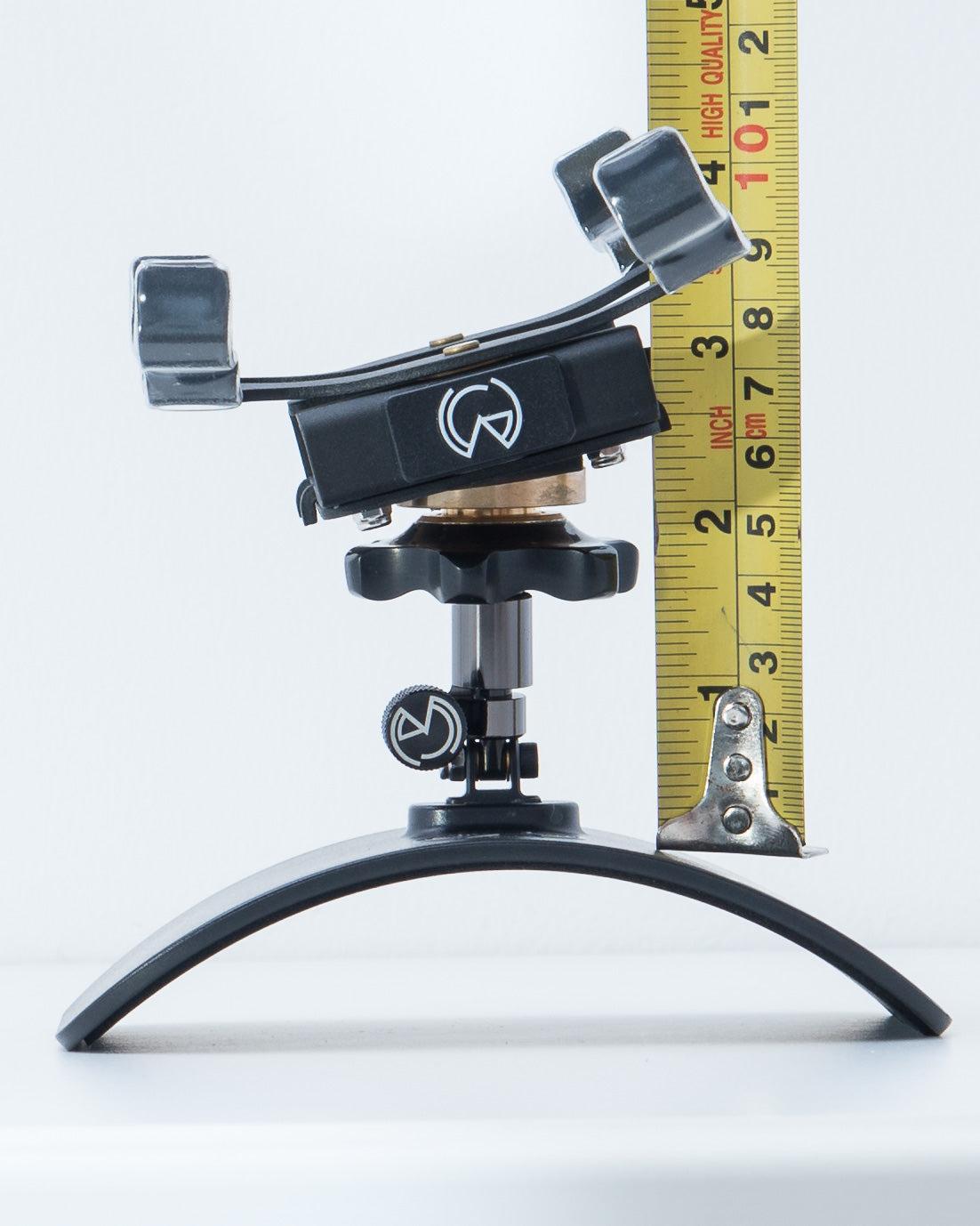

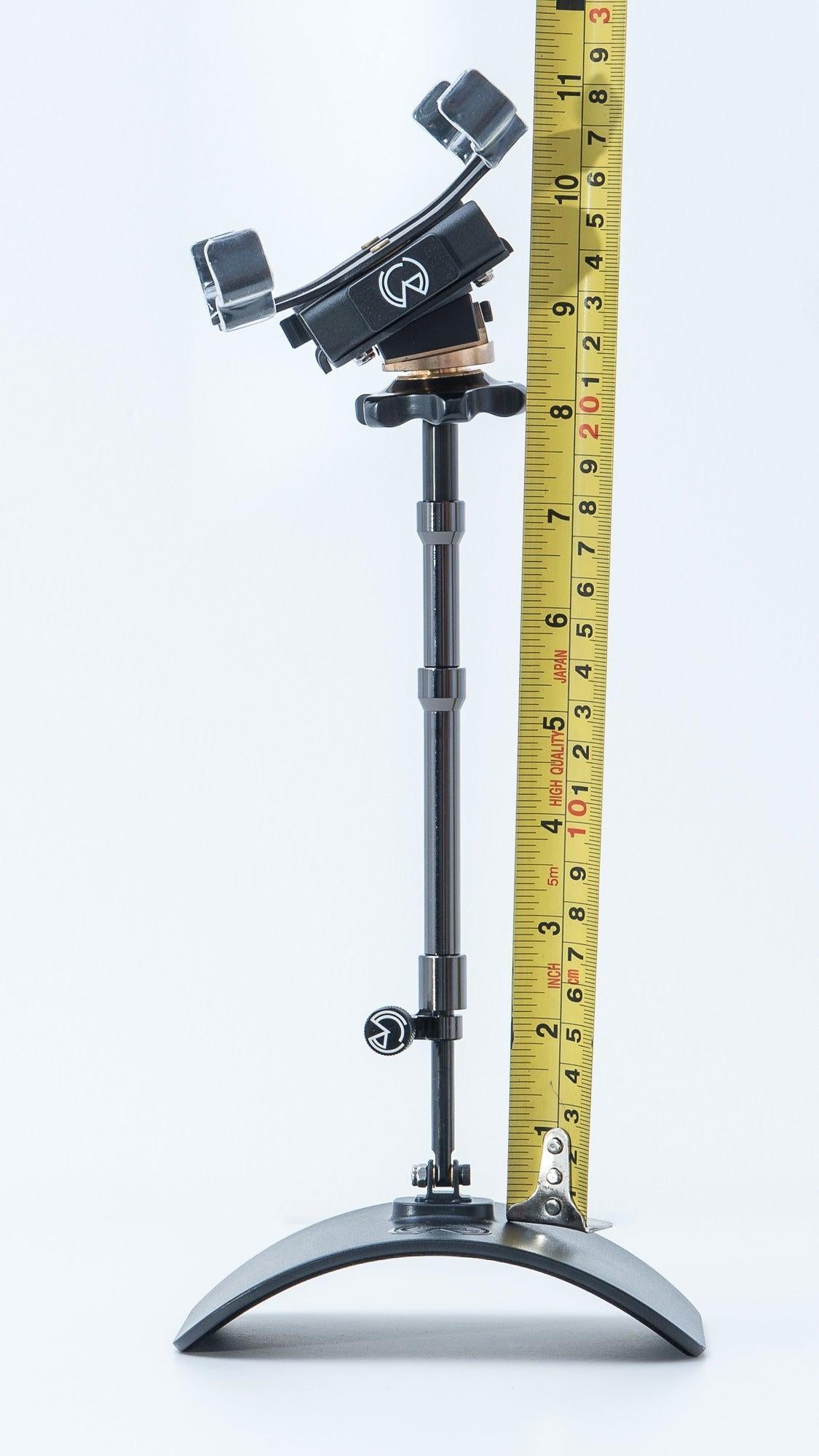

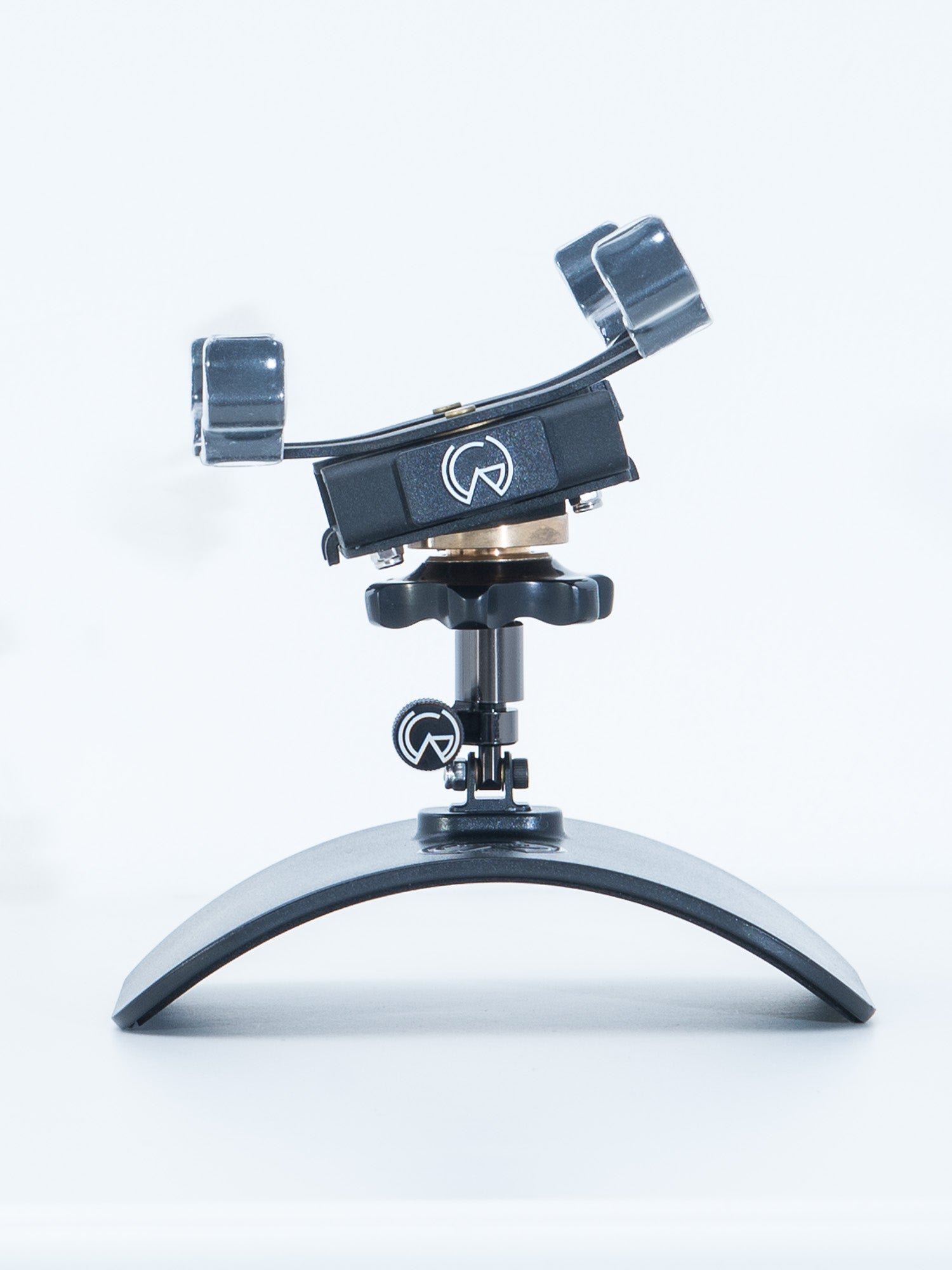

• Height Range: 7-24 cm (top of leg rest to cradle/guitar surface)
• Angle Range – 13° in all directions (Ball & Socket)

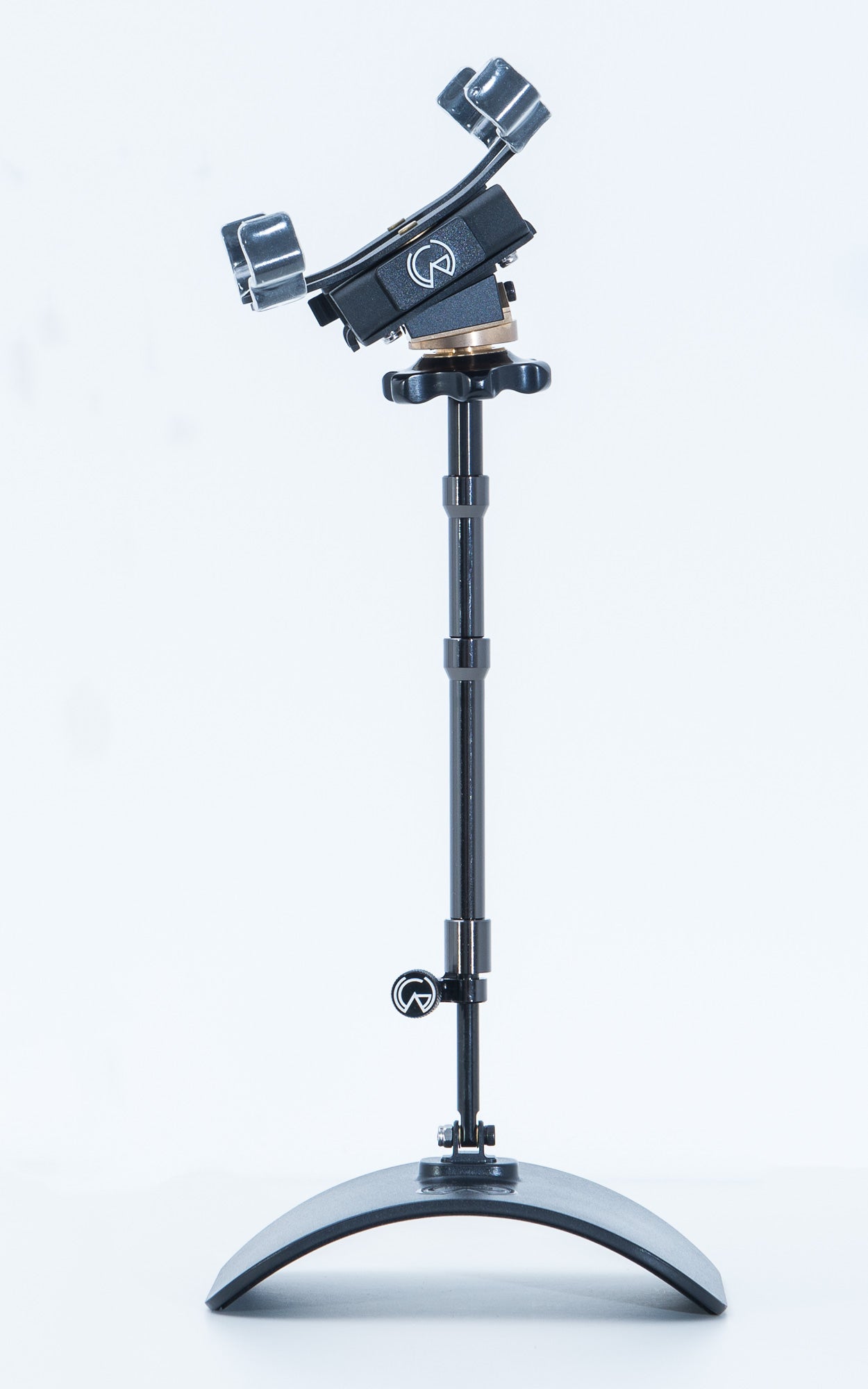

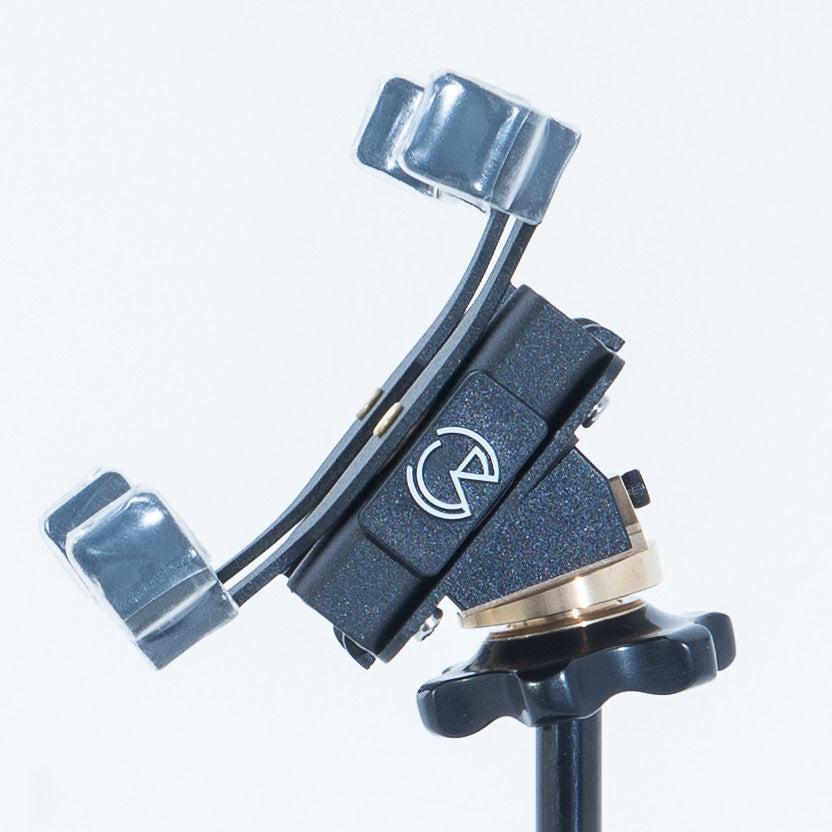

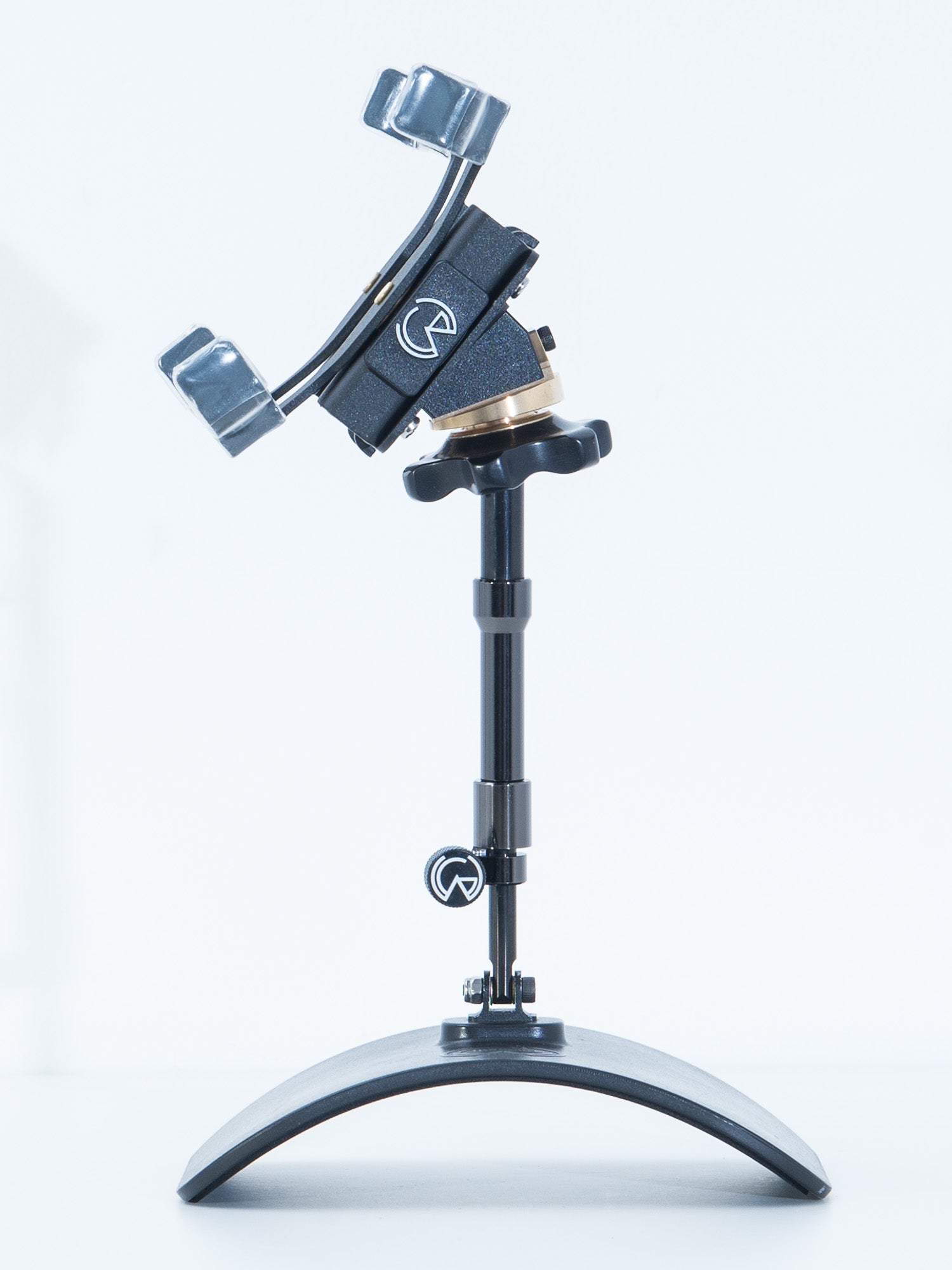

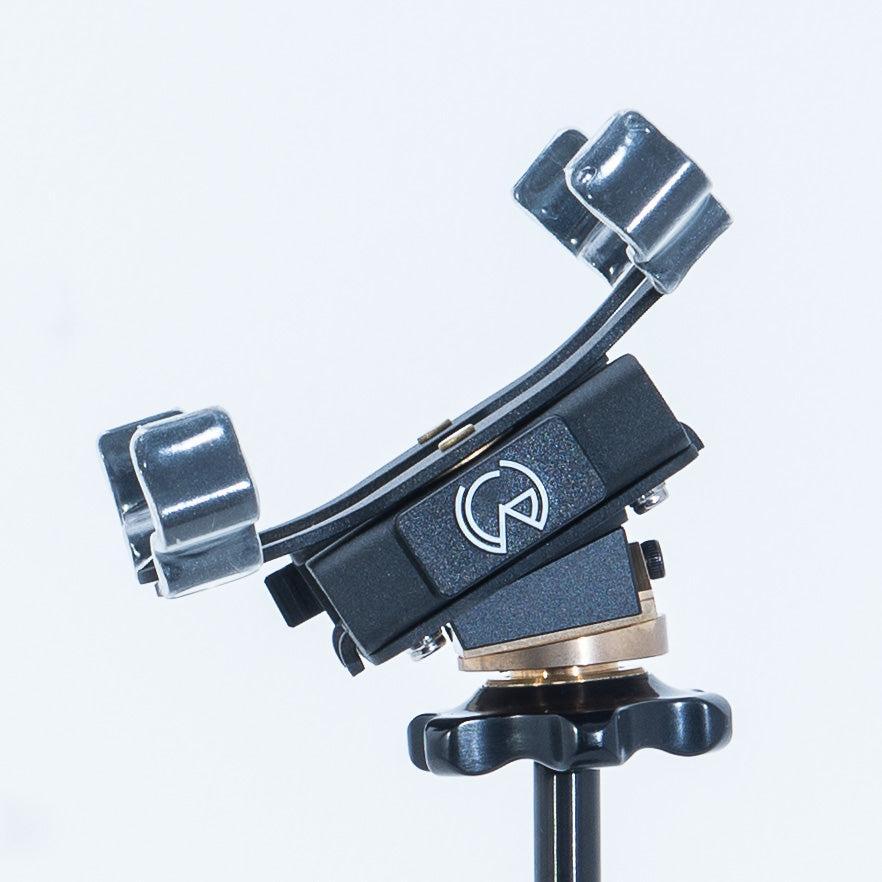

• Angle Bias: -14° + 15° or 25° with Angle Block
• Weight: 180 g

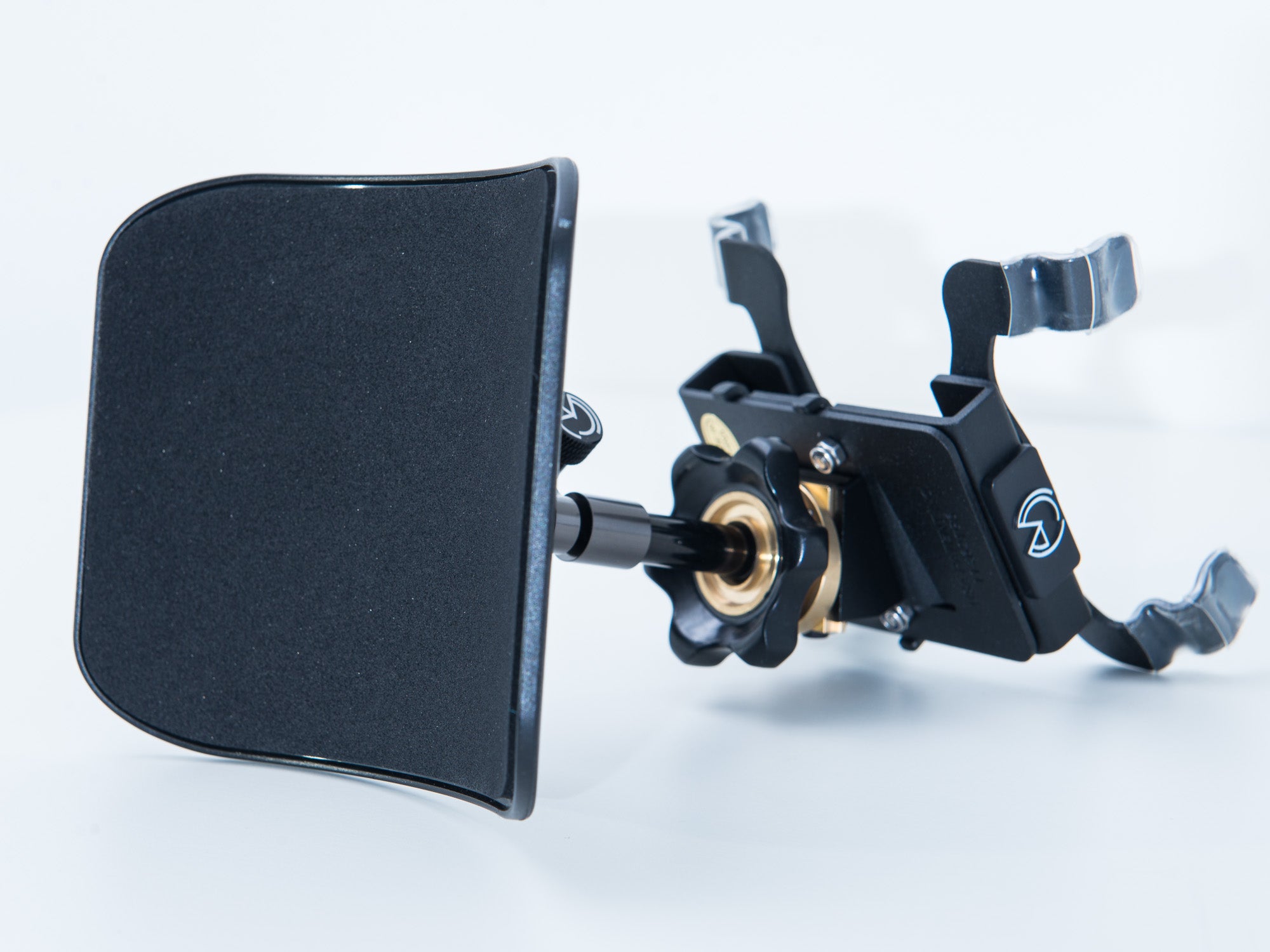

• Materials: Anodized aluminum, brass, stainless steel, PC/ABS Leg Rest
• Folded Size (for stowage; e.g. in guitar case): 130 x 100 x 60

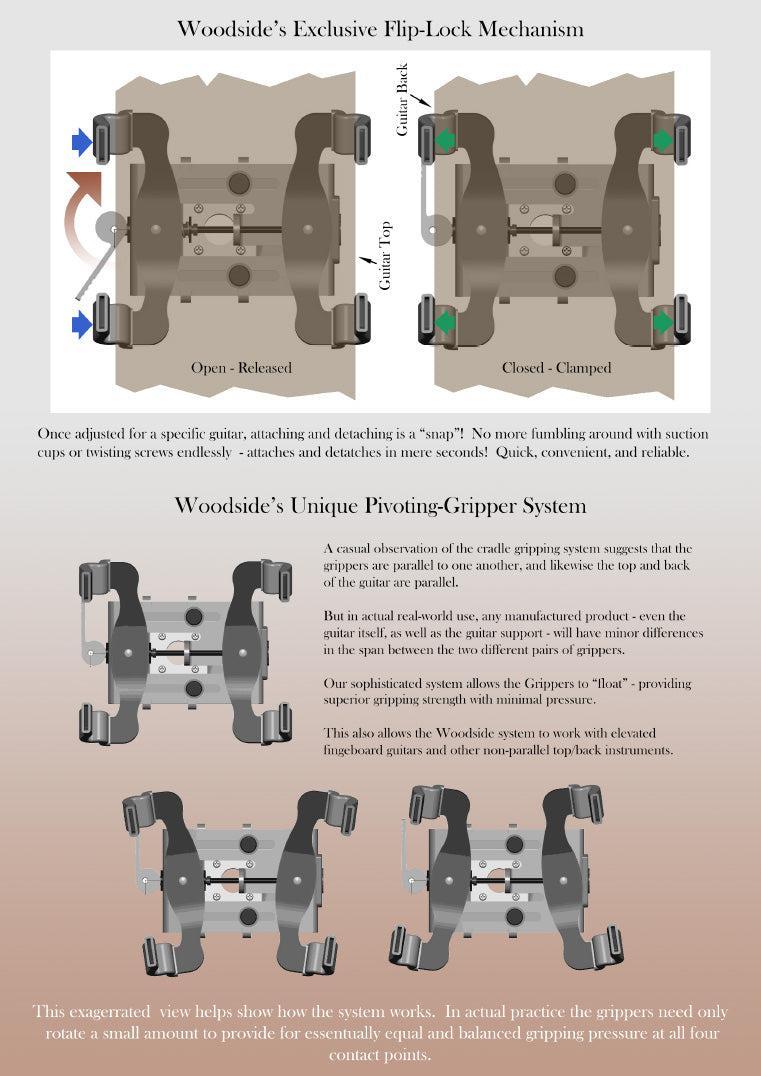

Woodside's Exclusive Flip-Lock Mechanism
Once adjusted for a specific guitar, attaching and detaching is a "snap"! No more fumbling around with suction cups or twisting screws endlessly - attaches and detaches in mere seconds! Quick, convenient, and reliable.
Woodside's Unique Pivoting-Gripper System
A casual observation of the cradle gripping system suggests that the grippers are parallel to one another, and likewise the top and back of the guitar are parallel.
But in actual real-world use, any manufactured product - even the guitar itself, as well as the guitar support - Mill have minor differences in the span between the two different pairs of grippers.
Our sophisticated system allows the Grippers to "float" - providing superior gripping strength minimal pressure.
This also allows the Woodside system to work elevated fingerboard guitars and other non-parallel top/back instruments.

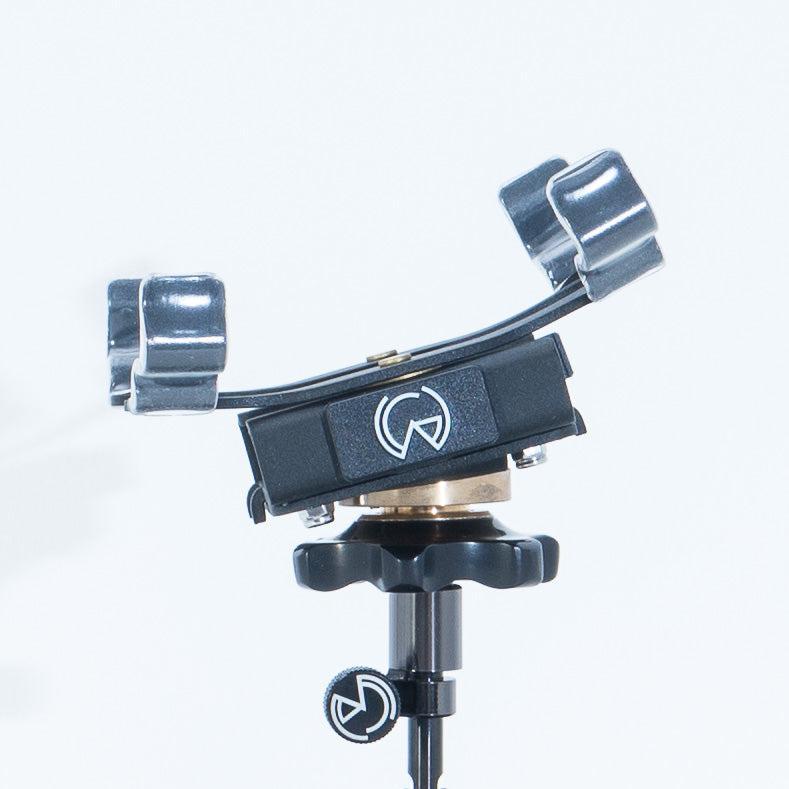

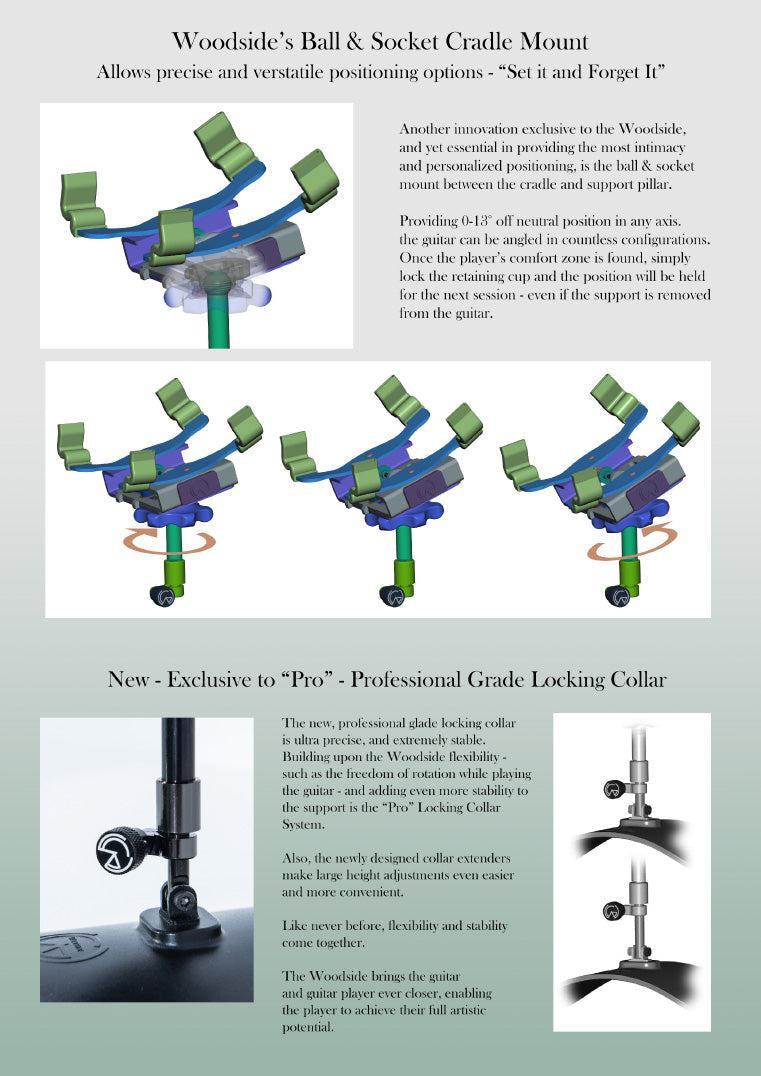

Woodside's Ball & Socket Cradle Mount
Allows precise and versatile positioning options - "Set it and Forget It"
Another innovation exclusive to the Woodside, and yet essential in providing the most intimacy and personalized positioning, is the ball & socket mount between the cradle and support pillar.
Providing 0-130 off neutral position in any axis. the guitar can be angled in countless configurations. Once the player's comfort zone is found, simply lock the retaining cup and the position will be held for the next session - even if the support is removed from the guitar.

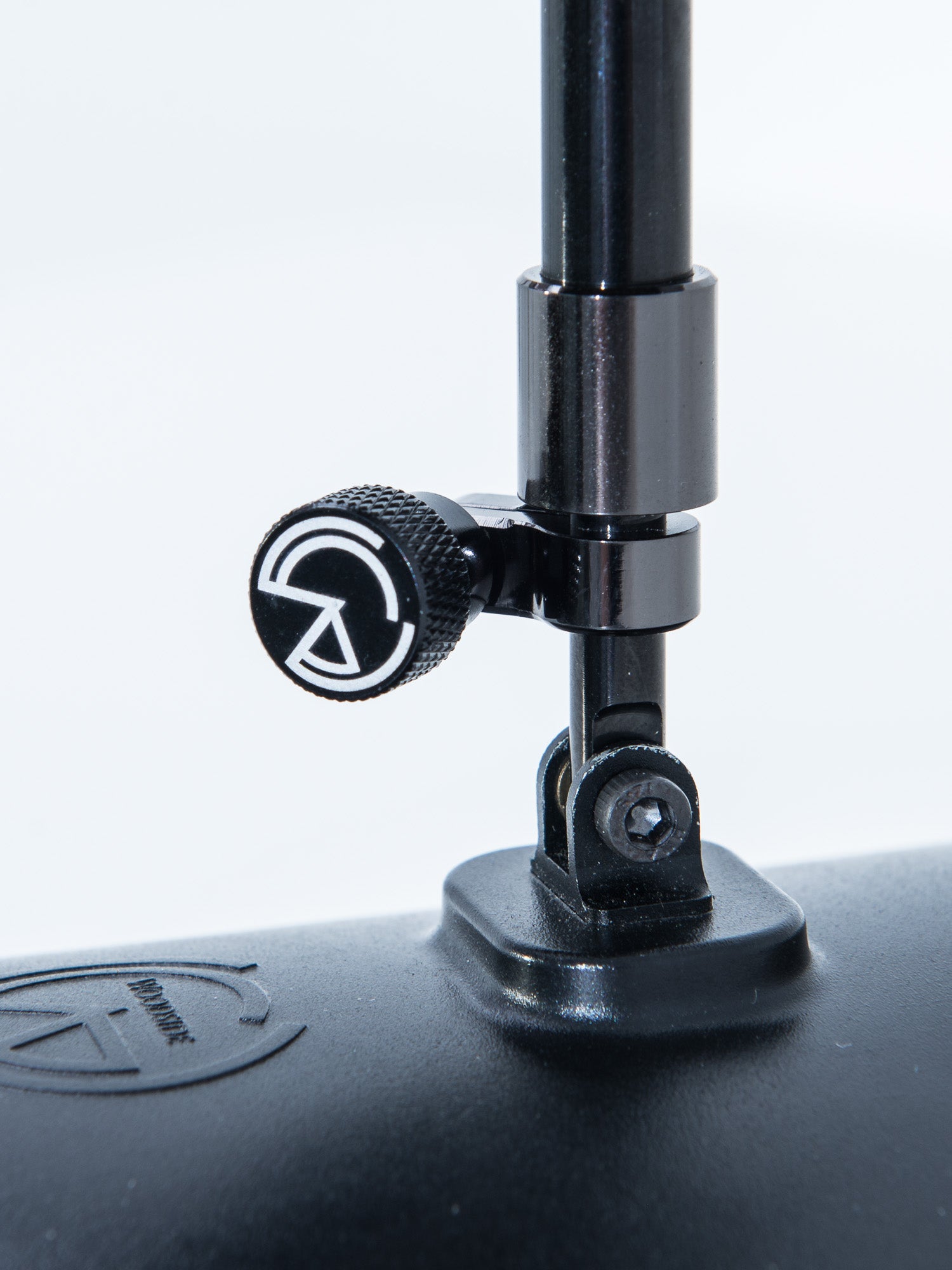

New - Exclusive to "Pro" - Professional Grade Locking Collar
The new, professional glade locking collar is ultra precise, and extremely stable. Building upon the Woodside flexibility such as the freedom of rotation while playing the guitar - and adding even more stability to the support is the "Pro" Locking Collar System.

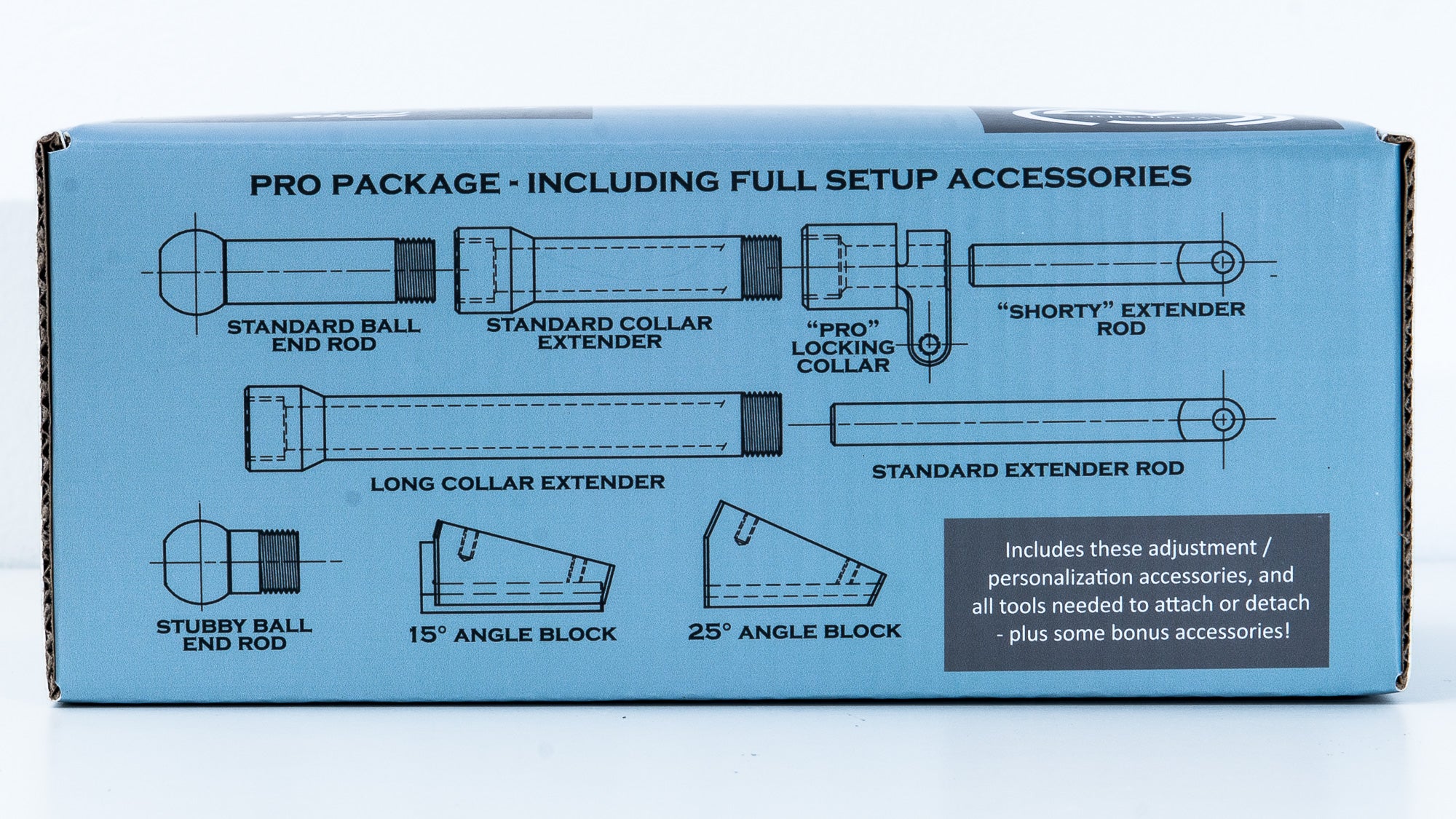

Also, the newly designed collar extenders make large height adjustments even easier and more convenient.
Like never before, flexibility and stability come together.
The Woodside brings the guitar and guitar player ever closer, enabling the player to achieve their full artistic potential.
